E-GO Series for Pipes

E-GO Series for the production of pipes and tubing

E-GO Series: versatility and constant output for pipe extrusion

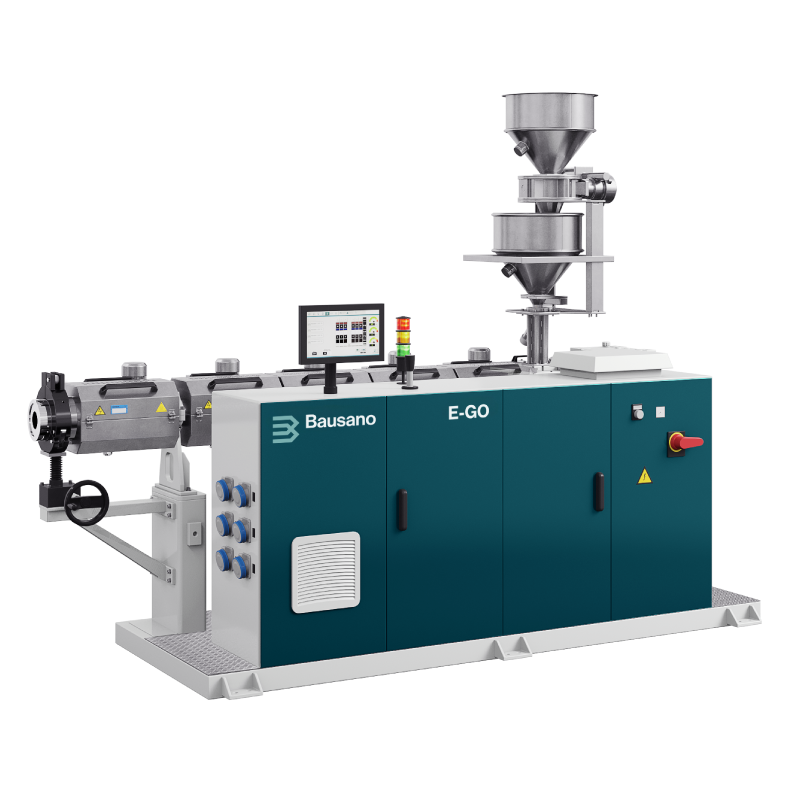

E-GO single screw extruders are designed to ensure process stability and high productivity in the production of pipes for water networks, gas distribution, drainage, irrigation, sanitary systems and heating systems. The dedicated screw profile ensures uniform plasticising at low operating temperatures, while the induction heating system enables energy savings of up to 35%.
The E-GO Series is suitable for processing a wide range of thermoplastic materials: PP, PP-R, PE, HDPE, LDPE, PE-X, PE-RT, PMMA, PC, PA and PU. The lines allow the production of single layer or multilayer pipes, in different diameters and pressure classes, for civil, industrial and infrastructure applications.

The extruder integrates with dedicated heads, calibrators, cooling tanks, haul off systems and cutting units. Real time digital control optimises every stage of the process, while high efficiency motors and robust gearboxes ensure operational continuity and long service life.

Different screw geometries for processing a greater variety of polymers:

Feeding zone designed to ensure consistent pellet conveying, with a uniform-depth channel sized according to the density and flowability of materials such as PE, PP, PA and PU.
Transition section with progressive channel reduction, engineered to activate gradual polymer melting through the combined effect of pressure and viscous shear, preventing overheating and degradation.
Calibrated metering zone designed to ensure flow stability, uniform viscosity and constant thrust towards the die head, guaranteeing consistent wall thickness and surface quality of the pipe.
Possibility of integrating Maddock mixing elements to improve thermal mixing and melt distribution, particularly useful when processing filled materials, multilayer structures or high-viscosity engineering polymers.

Caratteristiche tecniche estrusori monovite E-GO

Models	E-GO 45 LS / HS	E-GO 45	E-GO 60	E-GO 75	E-GO 90	E-GO 120	E-GO 125	E-GO 150
Screw diameter (mm)	45	45	60	75	90	120	125	150
L/D ratio	30	37/40	30/37/40	30/37/40	30/37/40	30	37	37
PE100 output (kg/h)	100/200	350/520	350/600/830	550/850/1250	800/1200/1900	1100	1500	1707
PP-HM output (kg/h)	80/170	300/370	300/500/680	400/700/875	550/900/1200	800	1200	1300
Motor power (kW)	25/44	83/100	100/157/190	150/217/300	215/335/450	310	400	620
Cooling zone	4	5	04-mag	04-mag	04-mag	5	6	8
Heating zone	4	5	04-mag	04-mag	04-mag	5	6	8
Total power (kW)	38/55	95/140	120/175/230	180/245/340	290/365/500	360	480	730

Technical configuration and application logic

Dedicated engineering for pipe extrusion

Within Bausano, a specialised team works exclusively on the design and development of E-GO single screw extruders for pipe production. This vertical approach makes it possible to optimise every detail of the screw, barrel and control system, delivering custom solutions that ensure maximum output, low consumption and operational reliability. A true pipe dedicated technical unit serving the customer’s production needs.

Energy efficiency with induction technology

E-GO pipe lines integrate high efficiency asynchronous motors and induction heating systems, capable of reducing consumption by up to 35% compared to traditional resistive systems. This combination, together with digital process control, enables more stable plasticising, lower maintenance and concrete savings in operating costs.

Fields of application for pipes

E-GO single screw extruders are ideal for the production of pipes in PP, PP-R, PE, HDPE, LDPE, PE-X, PE-RT, PMMA, PC, PA and PU, both single layer and multilayer. They are used in drinking water distribution networks, gas, drainage, wastewater, sewerage, agricultural irrigation, sanitary systems and heating systems, covering the main civil, industrial and infrastructure requirements.

A starting point to define the right solution together

By filling in the form below, it is possible to describe specific technical or production requirements. The technical team will carefully evaluate the request in order to propose the most suitable extrusion line or extruder.
