Virtual Experience
Downstream for PIPE line

Pipe downstream
All the accessories to complete the extrusion line

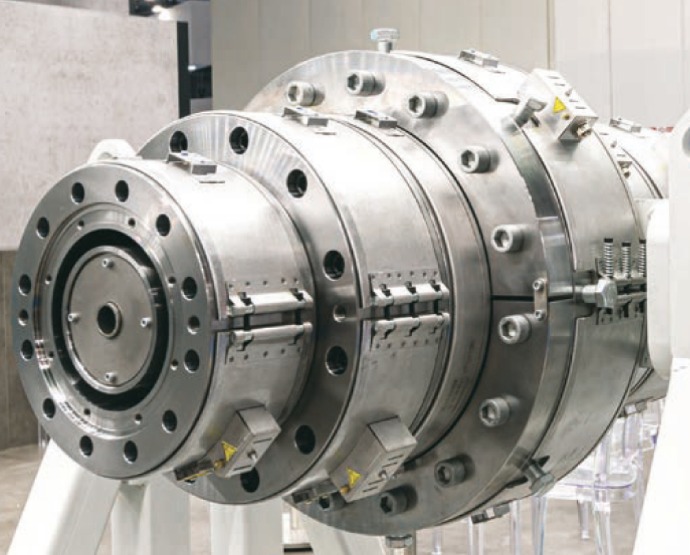

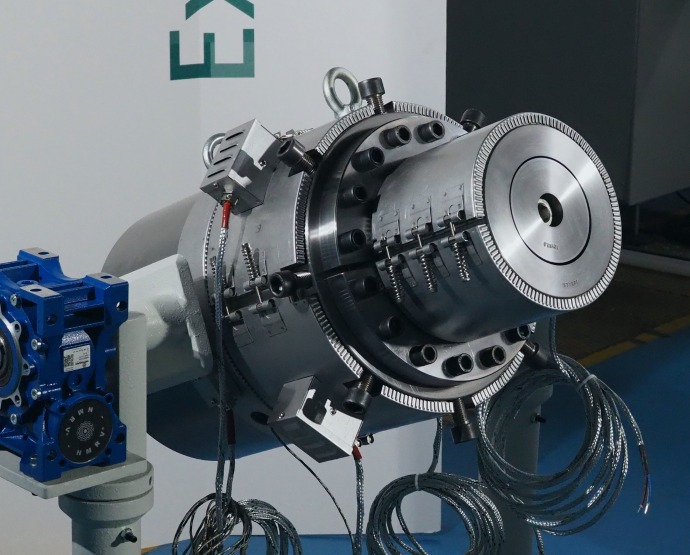

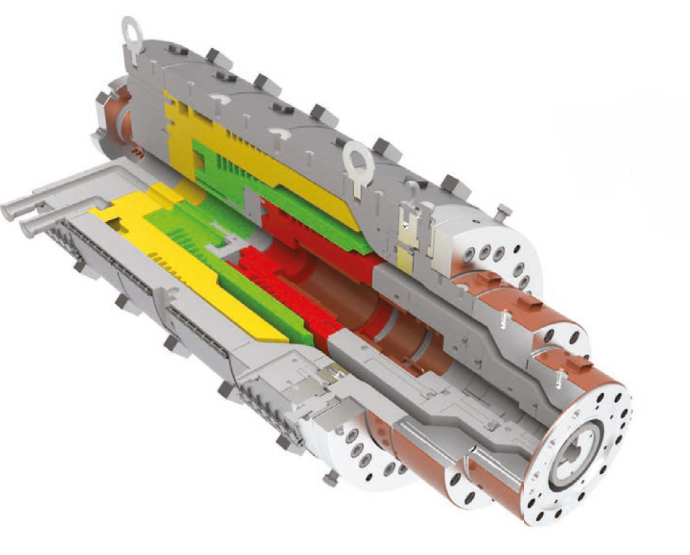

Die heads

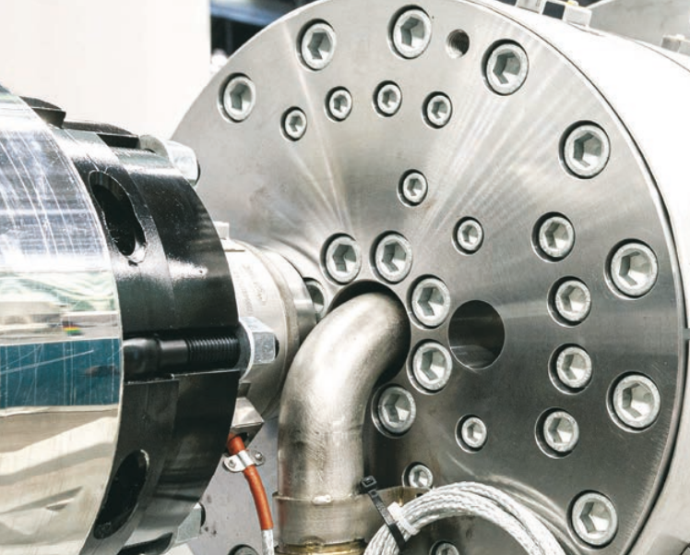

Pipe Die Head


Each extrusion line for pipe head is manufactured to meet the specific needs and process parameters of each processed material and desired final product. All the die heads for pipe are equipped with interchangeable pins and bushings to speed up the change of measurement and of special spokes, designed to optimise the flow of the thermoplastic material.

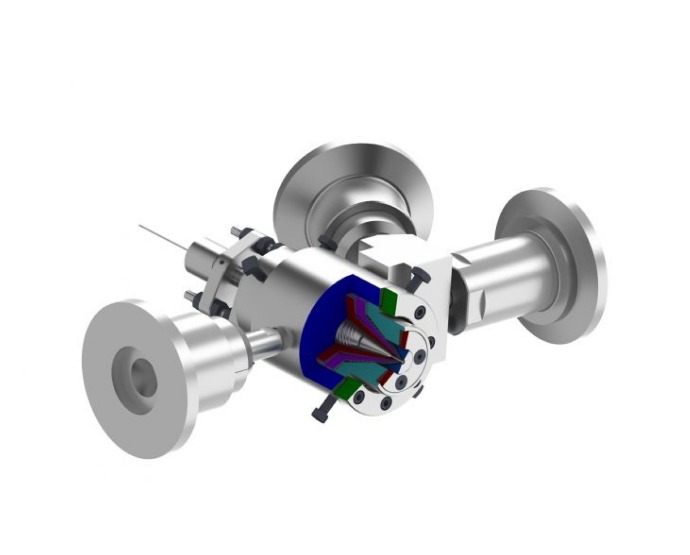

Double Exit Die Head


Completely thermoregulated both externally and internally and made of chromed or stainless steel, the heads can be double output with predisposition for co-extrusion with one or more auxiliary inputs.

Double Output Die Head

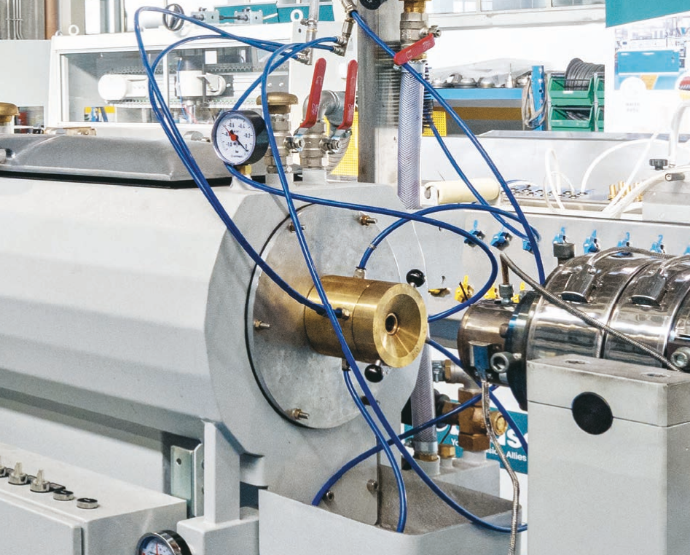

Calibration Bench

Calibration Bench


Manufactured according to the product characteristics and made of stainless steel, it ensures the total absence of corrosion and allows maximising extrusion pipe productivity. The cooling lenght is given by output and given dimensions of pipe. Total length of cooling zone, is calculated to reduce real internal pipe temperature below softening point.

Pipe Measurement System


The system monitors the pipe’s entire circumference, measuring the diameter, ovality, wall thickness and, thus, enabling centering of the extrusion tools early in the process. Early measurement of the wall thickness is of significant importance considering that pipes with large diameters and large wall thicknesses are being produced at a line speed.

Pipe Measurement System

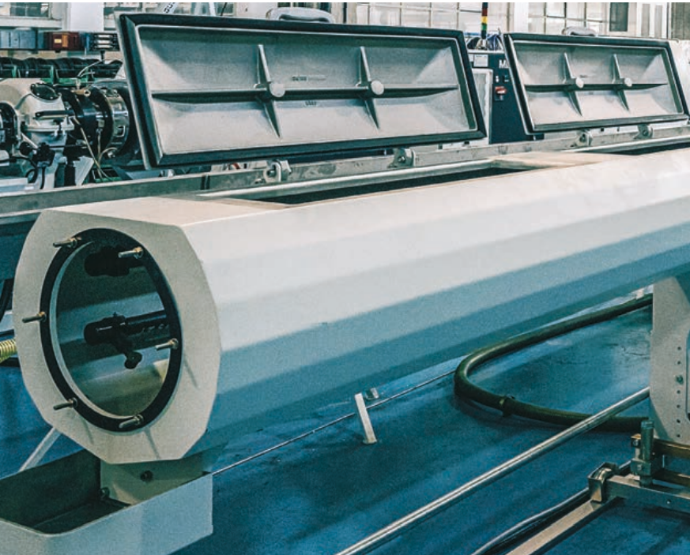

Cooling bench

Cooling Bench


Designed for cooling of pipes with diameter up to 1,000 mm, it allows reaching high extruded material linear speeds, ensuring the maximum dimensional stability. The ease of adjustment on 3 axes and the motor-driven longitudinal movement allow a quick and precise positioning during machining.

PLC on board


Our Extrusion Control System provides integrated line control for all extrusion applications. This seamless integration of upstream and downstream equipment data monitoring makes quality control and process analysis far more efficient with data requirements clearly identified.

PLC on board

Pipe Haul-Off Unit


Take off pipes with 2, 3 or 4 tracks, with flat and shaped rubber pads, complete the lines. They are available with rollers, pads or belts, with a contact length from 0.75 m to 3 m and a variable contact width depending on the specific application. Our haul-offs stand out nfor their durability and sturdy structure, that eliminates vibrations and discontinuity of traction.

Belling Machine


All our pipe production lines can be completed with the equipment required to widen and adapt the pipe inlets. We offer different machines according to our customer's manufacturing capacity: fully automatic pipe belling/socking machine with single and double oven.These machines can socket PP and PVC pipes in different range.

Belling Machine

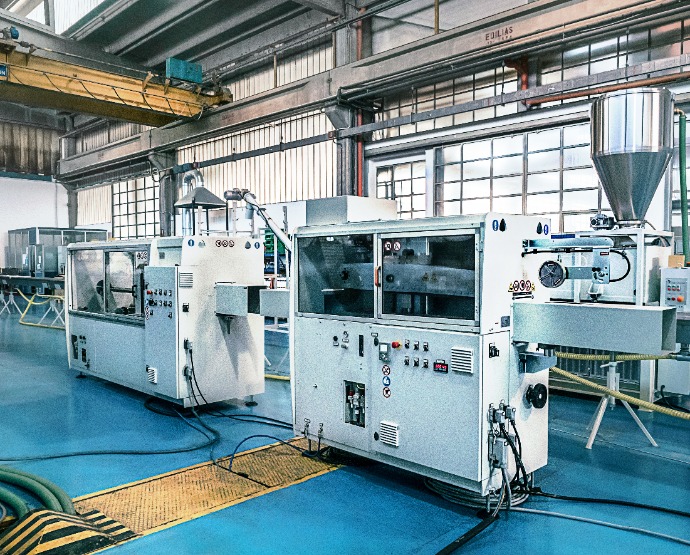

Modular Cutting Unit


Modular and ergonomic unit, provided with automatic pneumatic movement that does not require manual operation for adjustments such as cut length, trolley forward and backward speed. The haul-off has high friction, low-wear neutral and vulcanized rubber pads and this enables you to work at different speeds and produce pipes with high productions rate also at high extrusion speed.

Pipes Line



Extrusion Lines are used to produce high quality pipes
